Looks good, looking forward to seeing how it turns out!


jbalsamo23

Active Member
Messages
34
Likes
6

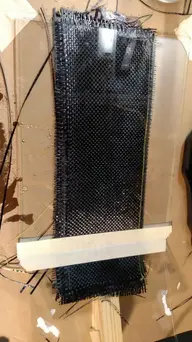

Here is a time line of what I have done so far.

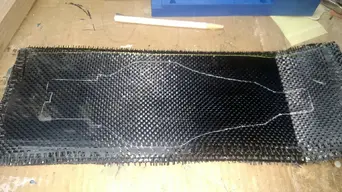

I rough cut out the chassis shape last night.

As of right now the chassis with the aluminum spacers I will have to add to make up the difference in the thicker parts of the stock chassis, it weighs about 30 grams less than the stock chassis. It also fees much stiffer than the stock chassis.

I will keep you guys updated.

IMG_20171231_184614277.jpg IMG_20171231_184621938.jpg IMG_20171231_184614277.jpg IMG_20171231_184621938.jpg IMG_20180104_194403577.jpg IMG_20180104_205653744.jpg IMG_20180104_205706900.jpg

Messages
15
Likes
10
That's some hi tech stuff right there. Could you tell us more about the materials and process you used to produce the chassis. I don't know much about carbon fiber, thought it had to be cured in an autoclave. Looks good!


jbalsamo23

Active Member
Messages
34
Likes
6
That's some hi tech stuff right there. Could you tell us more about the materials and process you used to produce the chassis. I don't know much about carbon fiber, thought it had to be cured in an autoclave. Looks good!
That's some hi tech stuff right there. Could you tell us more about the materials and process you used to produce the chassis. I don't know much about carbon fiber, thought it had to be cured in an autoclave. Looks good!
I think using an autoclave or some type of vacuum system would give you more consistent results, but hand laying seem to work out for what I am doing. An autoclave would probably insure you don't have any air bubbles between the fiber sheets that could cause week spots.



Here are the materials I used


And this was the process:

This guy had a cool idea and it worked out pretty good so far.
