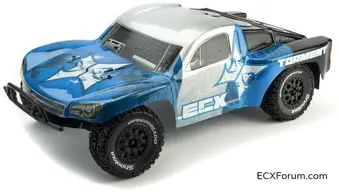

ECX Torment 2WD 1/10th scale Parts List:


#DYN1050EC - Speedpack 1800mAh Ni-MH 6-Cell Flat with EC3 Conn
#DYN1172 - Dynamite 15-Turn Brushed Motor
#DYNS2210 - WP 60A FWD/REV Brushed ESC
#ECX1015 - 5x10x4mm Ball Bearing (8)
#ECX1018 - Front Susp Arm (2): 1:10 2wd Circuit, Ruckus, Torment
#ECX1019 - Rear Susp Arm (2): 1:10 2wd Circuit, Ruckus, Torment
#ECX1020 - Shock Tower Set: 1:10 2wd Circuit, Ruckus, Torment
#ECX1021 - Transmission Case Set: 1:10 2wd All
#ECX1022 - Transmission Plastic Gear Set: 1:10 2wd All
#ECX1023 - Top Shaft & Spacer: 1:10 2wd All
#ECX1024 - Slipper Assembly: 1:10 2wd All
#ECX1025 - Transmission Pins and Diff Pins: 1:10 2wd All
#ECX1026 - Trans Outdrive Shaft (2): 1:10 2wd All
#ECX1027 - Gear Cover: 1:10 2wd All
#ECX1028 - Servo Saver Set: 1:10 2wd All
#ECX1033 - 3x13mm Driveshaft Screw (8)
#ECX1035 - Front Axle (2): 1:10 2wd All
#ECX1036 - Shock Body Set,Plastic: 1:10 2wd Cir/Ruc/Tor
#ECX1037 - Shock Cap, Piston, Pivot Ball Set: 1:10 2wd All
#ECX1038 - Shock End, Spr Cup, Spr Clip Set: 1:10 2wd All
#ECX1039 - Front Shock Shaft (2): 1:10 2wd Cir/Ruc/Tor
#ECX1040 - Rear Shock Shaft (2): 1:10 2wd Cir/Ruc/Tor
#ECX1041 - Fr Spring Blk, Medium (2): All 1:10 2wd
#ECX1042 - Rear Spring Blk,Medium(2): 1:10 2wd Cir/Ruc/Tor
#ECX1043 - Shock O-Ring Set: 1:10 2wd All
#ECX1044 - Hinge Pin Set: 1:10 2wd All
#ECX1045 - 2.5x4mm BH Screw (8)
#ECX1046 - Link Set, Plastic: 1:10 2wd Cir/Ruc/Tor
#ECX1048 - Body Clips (8)
#ECX1049 - Wheel Pin (4): 1:10 2wd All
#ECX1050 - 3x12mm Set Screw (4)
#ECX1051 - 3x3mm Set Screw (6)
#ECX1052 - Washer/Shim Set
#ECX1053 - Foam Block: 1:10 2wd Circuit, Boost
#ECX1055 - 10x15x4mm Ball Bearing (2)
#ECX1056 - 3x6x2.8mm Bushing (2)
#ECX1057 - 3mm E-Clip (8)
#ECX1058 - Ball Stud (6)
#ECX105 - M3 Locknut (4)
#ECX1060 - M4 Locknut, Flanged (4)
#ECX1062 - 3x8mm Button Head Screw (10)
#ECX1063 - 3x10mm Self-Tapping BH Screw (10)
#ECX1064 - 3x12mm Self-Tapping BH Screw (10)
#ECX1065 - Shoulder Screw Set (8)
#ECX1073 - Pinion Gear, 19 Tooth x 48 Pitch
#ECX1076 - Spur Gear
#ECX1098 - Motor screw/washer set
#ECX2006 - Fr/R Suspension Mount Set: 1:10 2wd Ruckus,Torment
#ECX2007 - Skid Plate Set: 1:10 2wd Ruckus, Torment
#ECX2008 - Chassis: 1:10 2wd Ruckus, Torment
#ECX2009 - Fr/R Body Mount Set: 1:10 2wd Ruckus, Torment
#ECX2010 - Fr/R Body Post Set: 1:10 2wd Ruckus, Torment
#ECX2011 - Electronics Cover & R Mount: 1:10 2wd Ruc/Tor
#ECX2013 - Rear Bumper Mount: 1:10 2wd Ruckus, Torment
#ECX2015 - Foam Block: 1:10 2wd Ruckus, Torment
#ECX2016 - 3x12mm Self-Tapping BH Screw (10)
#ECX2017 - 3x18mm Self-Tapping BH Screw (10)
#ECX2018 - 3x16mm BH Screw (10)
#ECX2019 - 3x10mm BH Screw (10)
#ECX230006 - Body, Silver/Blue: 1:10 2wd Torment
#ECX230007 - Body, Black/Green: 1:10 2wd Torment
#ECX231003 - Battery Strap, ESC Plate: 1:10 2wd Ruckus, Torment
#ECX232000 - Dsft Set Long Compl HD(2):1:10 2wd Cir/Ruc/Tor
#ECX232001 - Rear Axle HD (2): 1:10 2wd Cir/Ruc/Tor
#ECX232002 - Dshft Lng Plastic Only HD(2):1:10 2wd Cir/Ruc/Tor
#ECX232005 - Pivot Ball HD (4): 1:10 2wd All
#ECX234000 - Caster Blck, Steer Block, RR Hub (2): 1:10 2wd All
#ECX4003 - FR/R Tire, Prmnt, Blk Whl (2):1:10 2wd/4wd Torment
#ECX4004 - Nerf Bar Set: 1:10 2wd Torment
#ECX4005 - Front Bumper Set: 1:10 2wd Torment
#ECX4006 - Rear Bumper Set: 1:10 2wd Torment
#ECX4007 - Mud Flap Set: 1:10 2wd Torment
#ECX4802 - Front & Rear Wheel, Black (2): 1:10 2wd Torment
#SPM2322 - DX2E V3 Channel DSMR Surface Radio System
#SPMSS6170 - S6170 Standard Digital Surface Servo
